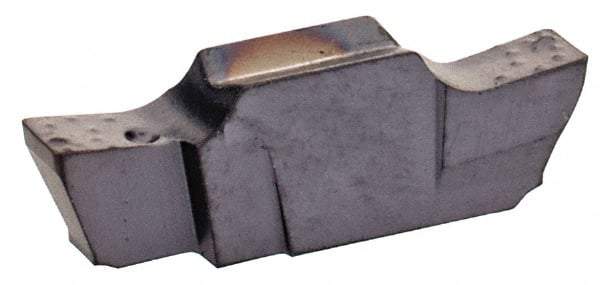

Iscar - 157015GEPI X Grade IC908, 1.57mm Cutting Width Carbide Grooving Insert - 2mm Max Depth of Cut, Right Hand, 0.15mm Corner Radius, TiAlN Finish
Item #: 09468505
Brand: Iscar
Model #: 6403582
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GEPI |
| Insert Size | 157015 |
| Material | Carbide |
| Cutting Width (mm) | 1.57 |
| Cutting Width (Decimal Inch) | 0.0620 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Right Hand |
| Relief Angle | 8 |
| Chipbreaker | X |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.0060 |
| Coating Process | PVD |
| Overall Length (mm) | 10.00 |
| Overall Length (Decimal Inch) | 0.3937 |
| Series | Cut Grip |
