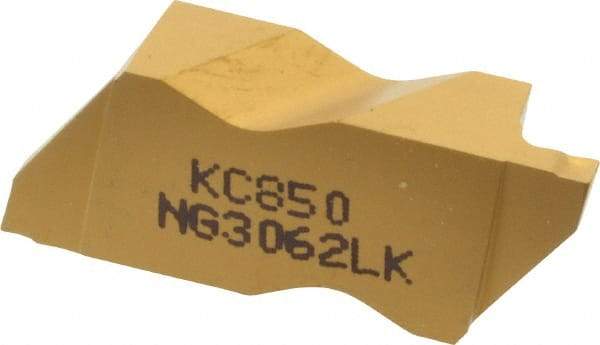

Kennametal - 3062NG K Grade KC850, 1.58mm Cutting Width Carbide Grooving Insert - 2.39mm Max Depth of Cut, Left Hand, 0.19mm Corner Radius, TiC/TiCN/TiN Finish
Item #: 08445926
Brand: Kennametal
Model #: 1114916
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 3062 |
| Material | Carbide |
| Cutting Width (mm) | 1.58 |
| Cutting Width (Decimal Inch) | 0.0622 |
| Maximum Depth of Cut (mm) | 2.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.0941 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | KC850 |
| Coating | TiC/TiCN/TiN |
| Insert Hand | Left Hand |
| Lead Angle | 3 |
| Insert Seat Size | 3 |
| Chipbreaker | K |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | CVD |
| Series | Top Notch |
| Rake Angle | 10 |
| Rake | Positive |
| Included Angle | 55 |
