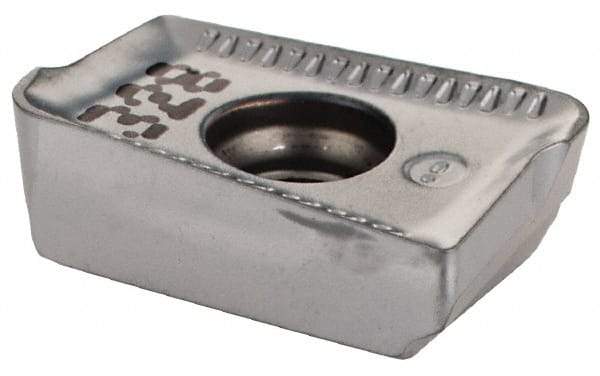

Iscar - 3M AXKT130416 MM Grade IC328 Carbide Milling Insert - TiCN Finish, 0.1717" Thick, 1.6mm Corner Radius
Item #: 07628258
Brand: Iscar
Model #: 5602944
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 3M AXKT |
| Insert Size | 130416 |
| Material | Carbide |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.3307 |
| Length (Decimal Inch) | 0.5039 |
| Thickness (Decimal Inch) | 0.1717 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | MM |
| ISO Number | 3M AXKT 130416R-PDRMM |
