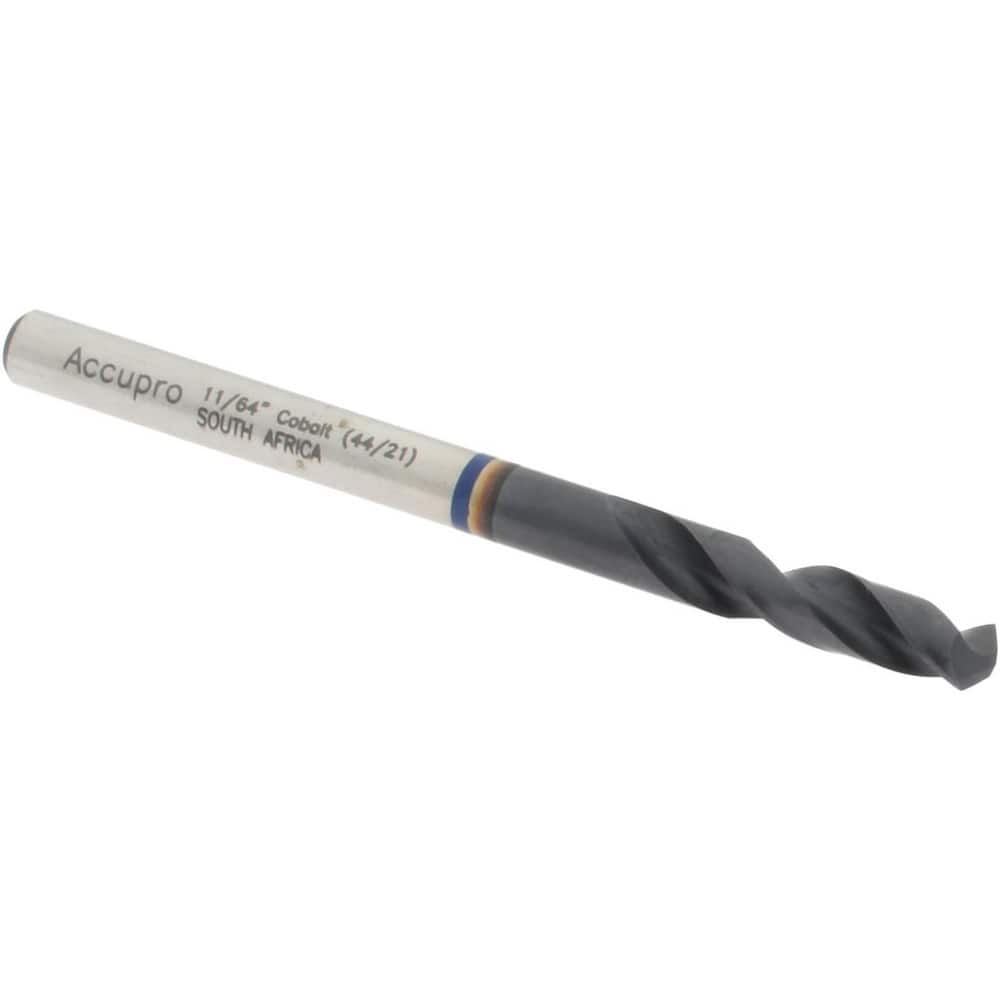

Screw Machine Length Drill Bit: 0.1719″ Dia, 120 °, Cobalt TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 05493556
Brand: Accupro
Model #: 1BS0437-AC
Product Specifications
| Drill Bit Size (Inch) | 11/64 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 120 |
| Spiral Type | Fast |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1719 |
| Drill Bit Size (Decimal Inch) | 0.1719 |
| Overall Length (mm) | 58.00 |
| Overall Length (Decimal Inch) | 2.2835 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Flute Length (mm) | 24.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
