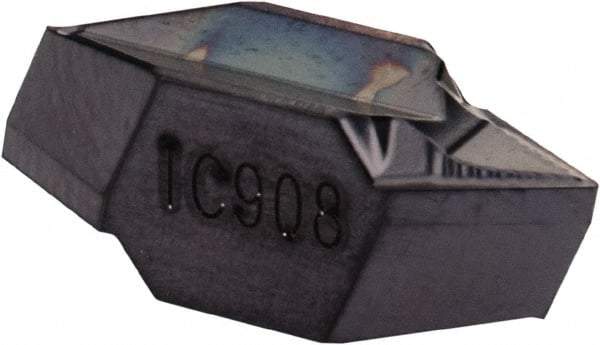

Iscar - TIPI5.4 Grade IC908, Internal Partial Profile 60° Threading Insert - 3.91mm & 8 TPI Int Pitch, TiAlN Finish, Carbide
Item #: 05278312
Brand: Iscar
Model #: 6403480
Exact Tooling IR#: 04
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TIPI |
| Insert Size | 5.4 |
| Thread Type | Internal |
| Thread Standard | Partial Profile 60 Degrees |
| Manufacturer's Grade | IC908 |
| Internal Pitch/TPI | 3.91 mm; 8 TPI |
| Coating | TiAlN |
| Material | Carbide |
| Coating Process | PVD |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Width of Cutting Tip (mm) | 5.41 |
| Width of Cutting Tip (Decimal Inch) | 0.2130 |
| Series | Cut Grip |
| Included Angle of Threading Tip | 60 |
