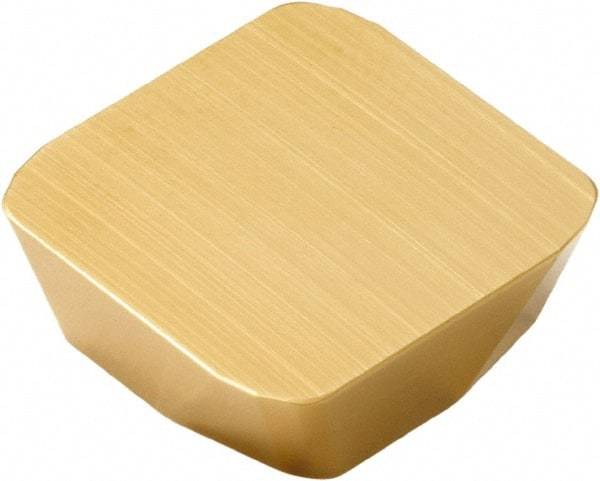

Seco - SPEN1906 MD20 Grade T25M Carbide Milling Insert - TiCN/TiC/TiCN/TiN Finish, 1/4" Thick, 3/4" Inscribed Circle
Item #: 04519567
Brand: Seco
Model #: 89720
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPEN |
| Insert Size | 1906 |
| Material | Carbide |
| Material Grade | C2/C3/C4 |
| Manufacturer's Grade | T25M |
| Coating | TiCN/TiC/TiCN/TiN |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (Decimal Inch) | 0.2500 |
| Relief Angle | 11.000 |
| Rake Angle | 0 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | MD20 |
| ISO Number | SPEN1906ZETR-MD20 |
