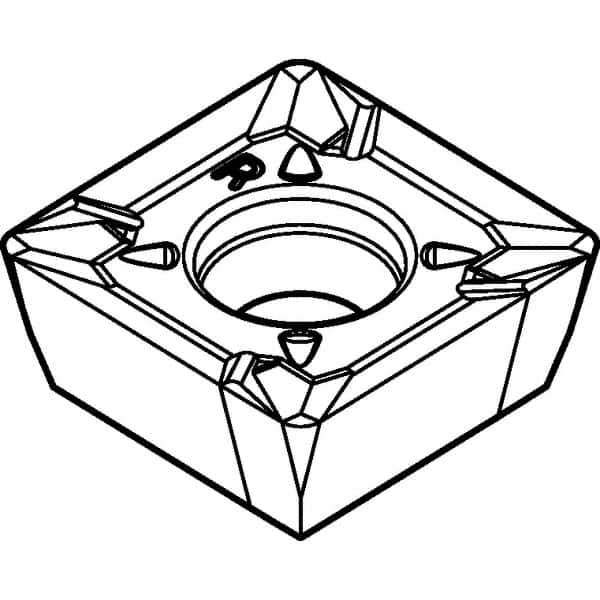

Kennametal - SPCT3125 LD2 Grade KC520M Carbide Milling Insert - TiAlN Finish, 5/32" Thick, 10mm Inscribed Circle, 0.8mm Corner Radius
Item #: 04144812
Brand: Kennametal
Model #: 2544200
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPCT |
| Insert Size | 3125 |
| Material | Carbide |
| Material Grade | C1/C2 |
| Manufacturer's Grade | KC520M |
| Coating | TiAlN |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | LD2 |
| ISO Number | SPCT10T3PPERLD2 |
