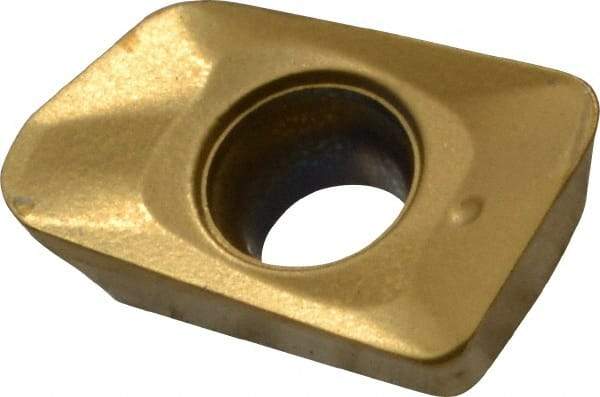

Seco - XOMX060208 M05 Grade F30M Carbide Milling Insert - TiAlN/TiN Finish, 0.096" Thick, 0.031" Corner Radius
Item #: 02129989
Brand: Seco
Model #: 03795
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOMX |
| Insert Size | 060208 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | F30M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.1610 |
| Length (Decimal Inch) | 0.2730 |
| Thickness (Decimal Inch) | 0.0960 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 7.000 |
| Rake Angle | 21 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | M05 |
| ISO Number | XOMX060208R-M05 |
