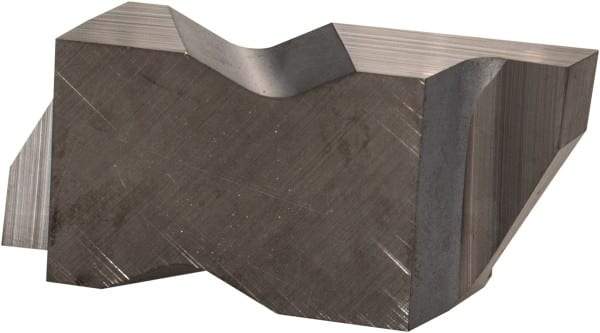

Kennametal - 3088NG Grade K68, 2.24mm Cutting Width Carbide Grooving Insert - 2.39mm Max Depth of Cut, Right Hand, 0.19mm Corner Radius, Uncoated
Item #: 01869585
Brand: Kennametal
Model #: 1113588
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 3088 |
| Material | Carbide |
| Cutting Width (mm) | 2.24 |
| Cutting Width (Decimal Inch) | 0.0882 |
| Maximum Depth of Cut (mm) | 2.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.0941 |
| Material Grade | C3 |
| Manufacturer's Grade | K68 |
| Coating | Uncoated |
| Insert Hand | Right Hand |
| Lead Angle | 3 |
| Insert Seat Size | 3 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Series | Top Notch |
| Rake | Neutral |
| Included Angle | 55 |
