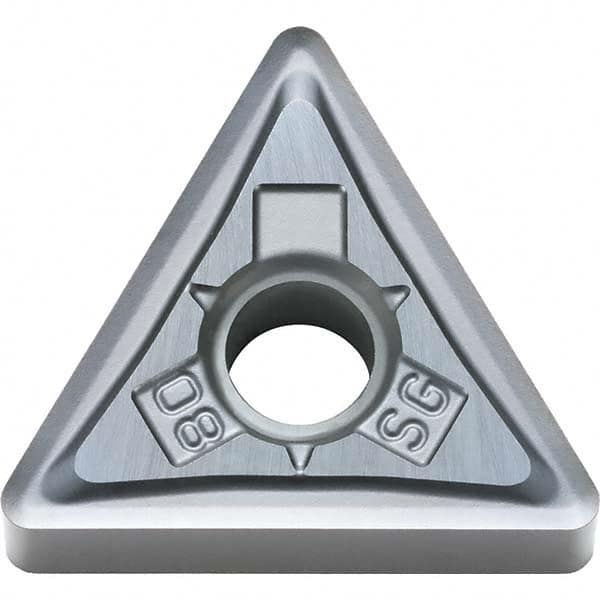

Kyocera - TNMG332 SG Grade PR1535 Carbide Turning Insert
Item #: 97767297
Brand: Kyocera
Model #: 8861395
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 332 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | PR1535 |
| Coating | Megacoat Nano |
| Chip Breaker | SG |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | TNMG160408SG |
| Rake | Negative |
| Coating Process | PVD |
| Manufacturers Catalog Number | TNMG332SG PR1535 |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | M |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | TNMG |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Facing, Copying, Chamfering, Boring |
| MultiUseTool | Yes |
| Shape | Triangle |
